TOOLING



main parameters:

Table working surface:

X-axis travel:

Y-axis travel:

Z-axis travel:

other parameters:

Number of devices:

Spindle taper:

Spindle rotation speed:

Dimensions w x d x h:

Output of main electric motor:

Machine weight:





main parameters:

Table working surface:

X-axis travel:

Y-axis travel:

Z-axis travel:

other parameters:

Number of devices:

Spindle taper:

Spindle rotation range:

Dimensions w x d x h:

Output of main electric motor:

Machine weight:





HORIZONTAL TOOLING CENTRE:

Table working surface:

Dimensions w x d x h:

Number of devices:

other parameters:

Spindle taper:

Spindle rotation range:

Output of main electric motor:











1000x640 mm

750 mm

500 mm

500 mm



20

40

8000 min

3700 x 2200 x 2735 mm

43 kW

5400 kg







1300x670 mm

1016 mm

610 mm

720 mm



30

40

8000 min

2850 x 2340 x 2580 mm

55 kW

6400 kg







1321 x 457 mm

1016 x 457 x 559 mm

24+1



40

8000 min

14,9 kW

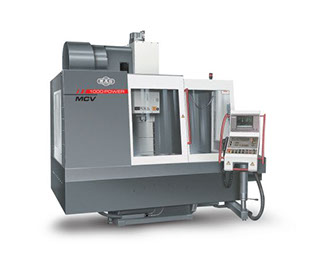

MCV 1000 CNC

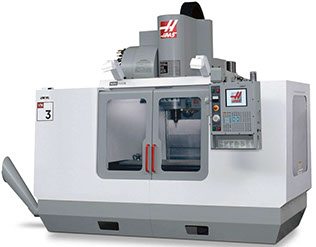

HAAS (3-5 os)



splinter screw conveyor, 1 M programme memory,

15" LCD colour monitor, USB port and solid cutting of internal thread



The Haas CNC control system is designed for easy use without the need to refer to the manual.



It is operated through logical steps and built in software allowing the operator to focus on working and not on programming.

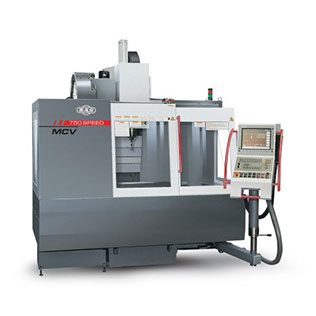

MCV 750 CNC
